Libove Pulser Demonstration

Video Demonstrating 5GSPS and 8GSPS UWB Arbitrary Waveform Generation

Two arrays of 8 Libove pulsers with 125 and 200 picosecond taps, respectively, are used to generate 8 Gigasamples/second and 5 Gigasamples/second arbitrary waveforms using inexpensive DACs to control the waveshapes. Each generated 1600 or 1000 picosecond wave is comprised of 8 individually adjustable amplitude pulses, each 125ps wide. These 5 and 8 Gigasample/second arbitrary waveform bursts can be repeated at rates of up to 600 million bursts per second. See the 2 minute (13.3MB) video to better understand the microwave arbitrary waveform generation capability of Libove pulser arrays.

The video shows the performance of the Libove Pulser rendered in GaAs as a single circuit. The next rendition will be quad arrays of pulsers and samplers in InP and is predicted to yield a substantial increase in performance. This technology is available today for licensing. Contact Furaxa to discuss how we help with your UWB or other high performance ASIC design.

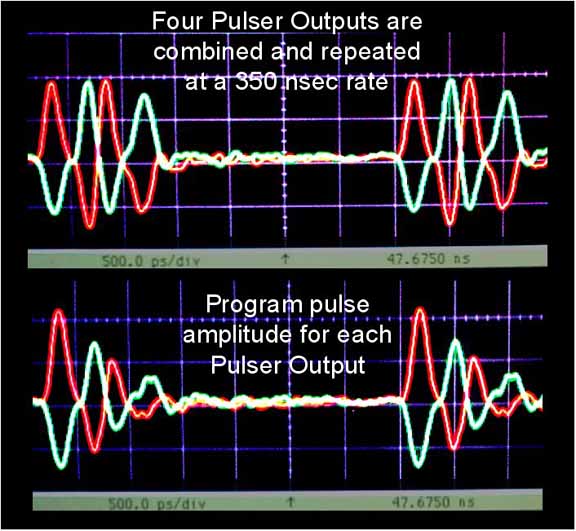

Oscillocope Images

Waveforms demonstrating the unique capabilities of Libove Sampler Pulser circuits

Differential signaling using an array of four Libove Pulsers

For more information on the Libove Pulser Sampler please read the related Press Release
